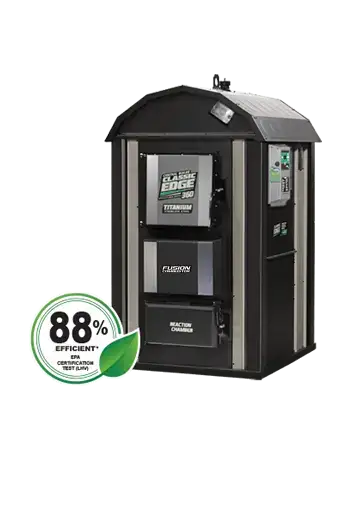

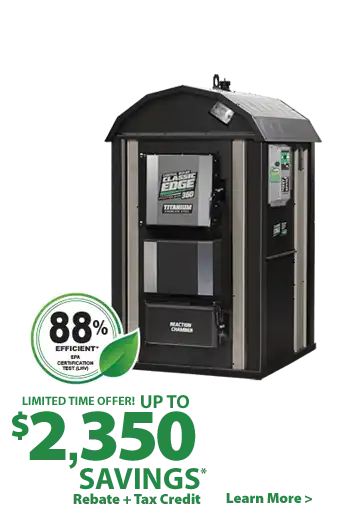

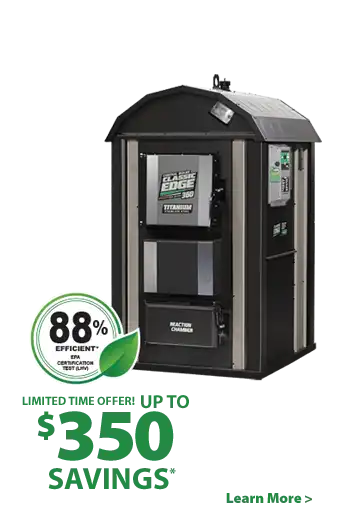

Classic Edge Titanium HDX Outdoor Wood Furnace
Classic Edge 360 Titanium HDX
Overall Efficiency (LHV) - 88.4%*
Overall Efficiency (HHV) - 82.2%*
Manufacturer's Rated Heat Output Capacity - 150,000 Btu/hr**
Heat Output (12 hr) - 66,894 Btu/hr
The Classic Edge 360 HDX is EPA Step 2 Certified.
COMPARE ALL CLASSIC EDGE HDX MODELS
Firebox Volume - 10 cu ft
Firebox Dimensions - 28"L x 29"H x 21"W
Door - 16"W x 16"H
Ash Cleanout Door - 18"W x 9"H
Water Capacity - 150 gal.
Weight - 1,365 lbs
Supply/Return Ports - 1 set of 1-1/4" supply and return ports (can be configured for two pumps)
Integrated Wi-Fi Connectivity - Standard
Measurements and Foundation Dimensions - Illustration
Included with outdoor furnace - Water Test Kit, Cleaning Rod, Scraper Tool, Ground Rod Kit and two 4-foot chimney sections
NOTE: Specifications are subject to change without notice.
* Efficiencies are determined under the same test conditions using higher heating value, lower heating value and overall efficiency. **Based on EPA qualifying test.
Color selections are close representations but are limited by processing and viewing conditions.
