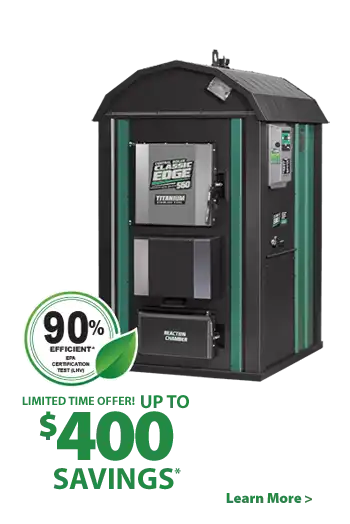

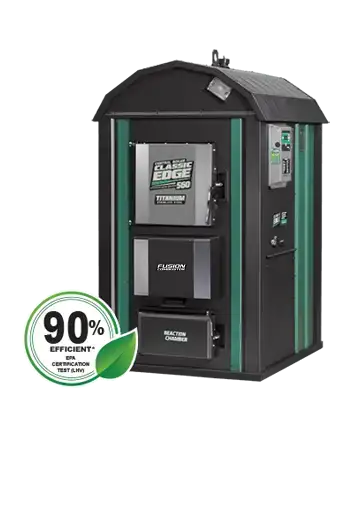

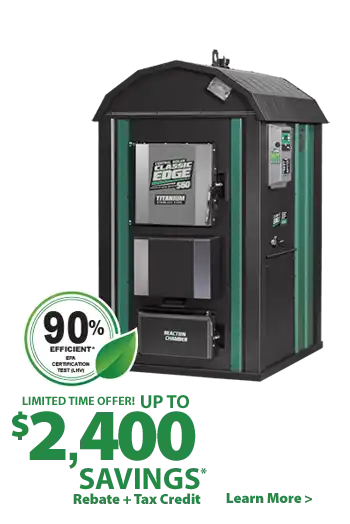

Classic Edge Titanium HDX Outdoor Wood Furnace
Classic Edge 560 Titanium HDX
Overall Efficiency (LHV) - 90.2%*
Overall Efficiency (HHV) - 83.8%*
Manufacturer's Rated Heat Output Capacity - 200,000 Btu/hr**
Heat Output (12 hr) - 92,417 Btu/hr
The Classic Edge 560 HDX is EPA Step 2 Certified.
COMPARE ALL CLASSIC EDGE HDX MODELS
Firebox Volume - 14 cu ft
Firebox Dimensions - 33"L x 32"H x 23"W
Door - 18"W x 18"H
Ash Cleanout Door - 18"W x 9"H
Water Capacity - 205 gal.
Weight - 1,668 lbs
Supply/Return Ports - 1 set of 1-1/4" supply and return ports (can be configured for two pumps)
Integrated Wi-Fi Connectivity - Standard
Bypass Door and Alarm - Standard
Measurements and Foundation Dimensions - Illustration
Included with outdoor furnace - Water Test Kit, Cleaning Rod, Scraper Tool, Ground Rod Kit and two 4-foot chimney sections
NOTE: Specifications are subject to change without notice.
* Efficiencies are determined under the same test conditions using higher heating value, lower heating value and overall efficiency. **Based on EPA qualifying test.
Color selections are close representations but are limited by processing and viewing conditions.
Is this model right for my application? Use the Savings and Sizing Calculator to find out:
