CLASSIC EDGE HDX

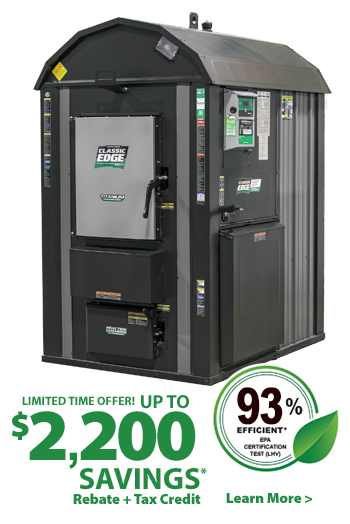

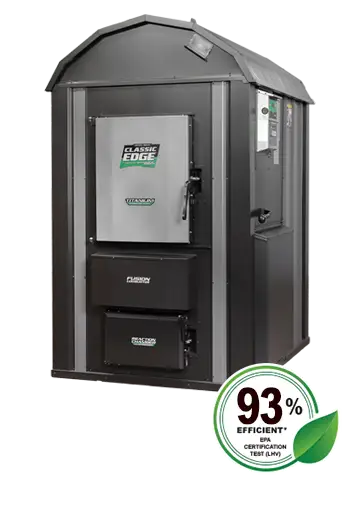

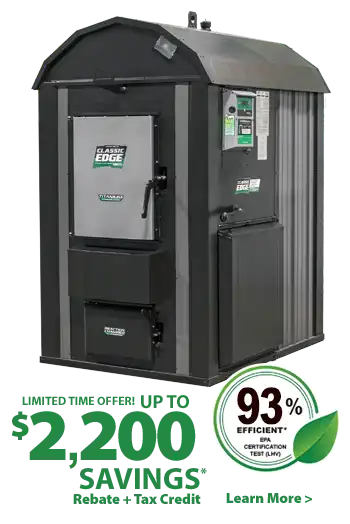

Classic Edge 865 Titanium HDX

Overall Efficiency (LHV) - 92.7%*
Overall Efficiency (HHV) - 86.5%*

Manufacturer's Rated Heat Output Capacity - 245,000 Btu/hr**

Heat Output (12 hr) - 156,000 Btu/hr

The Classic Edge 865 HDX is EPA Step 2 Certified.

COMPARE ALL CLASSIC EDGE HDX MODELS

Engineered specifically to be easier than ever to operate and maintain, the Classic Edge 865 HDX is cleaner burning, more efficient and packed with enhanced features!

• Taller firebox door and the bottom of the door is lower for better firebox visibility.
• Deeper heat exchanger for better efficiency and a longer Fusion Combustor aid in easier operation and a longer duration between maintenance intervals.
• Two rows of primary air tubes are located on both sides of the firebox; the top row of air tubes is higher than the bottom of the door.
• 360-degree primary air supply provides air in the front, back and both sides of the firebox for optimal combustion burning different types of wood.
• No removable ash pan means less maintenance and more heat transfer area.
• Fireball tunnel refractory sections are more robust and interlocking.
• Easy View™ Heat Exchanger offers 52% more surface area than Classic Edge HDX 760 resulting in higher efficiency. Easy-to-install turbulators are shorter and more robust for added durability.
• Fittings, nipples, valves and a pump flange are standard on one set of supply and return ports. This saves time and money and makes connecting water lines easy.

Firebox Volume - 23 cu ft

Firebox Dimensions - 37"L x 41.5"H x 26"W

Door - 22.75"W x 28.75"H

Ash Cleanout Door - 19"W x 11"H

Water Capacity - 360 gal.

Weight - 2,500 lbs

Supply/Return Ports - Three sets of 1-1/4" supply and return ports

Bypass Door and Alarm - Standard

Measurements and Foundation Dimensions - Illustration

Manufacturer's Rated Heat Output Capacity** - 245,000 Btu/hr

Included with outdoor furnace - Water Test Kit, Cleaning Rod, Scraper Tool, Ground Rod Kit and two 4-foot chimney sections. Fittings, nipples, valves and a pump flange are standard on one set of supply and return ports.

NOTE: Specifications are subject to change without notice.

**Based on EPA qualifying test.
