Classic Outdoor Wood Furnace Series

Classic CL 4030


Find your local dealer

In the U.S., this appliance is for non-residential applications only.

Specifications

Door - 20"W x 20"H

Firebox - 40"L x 30"H x 26"W

Heat Transfer Area - 52 sq ft

Weight - 1,350 lbs

Water Capacity - 140 gal.

Measurements and Foundation Dimensions - Illustration

Included with outdoor furnace - Water Test Kit, Chimney Restrictor, Rain Cap, Thermostatic Valve Kit and two 4-foot chimney sections


Features and Benefits

  • More heat from the wood - the RippleTop design maximizes the surface area of the firebox and the HeatLock Baffle traps the heat in the heat collection area.
  • Easy to load - the large, insulated cast iron door is ergonomically designed for easy opening and closing and insulated to lock in the heat.
  • Easy to operate - the automatic draft control opens and closes as needed to control the water temperature in the system.
  • Durable and long-lasting - steel siding and powder-coating paint provide unequaled fit and finish and withstand the elements of time.
  • Dual Fuel Ready option - All Classic models are available as a Dual Fuel Ready model (standard on the CL 7260 and Pallet Burner) that allows the furnace to be fitted with an optional fuel oil, natural gas, or propane burner.

undefined

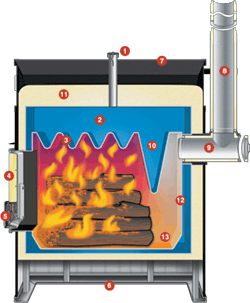

  1. Vent Cap - design eliminates evaporation.
  2. High Capacity Water Jacket - is tested multiple times to ensure welding integrity.
  3. Ripple Top Design - for increased heat transfer area and lower maintenance.
  4. Large, Insulated Cast Iron Door - ergonomically designed with a large door for easy loading. Door is insulated for maximum efficiency. Door parts are powder-coated for increased paint durability.
  5. Automatic Draft Control - thermostatically controls the system water temperature.
  6. Skid Base Framework - makes installation easy with or without cement foundation. Only the CL 7260 and Pallet Burner require a slab.
  7. Welded Steel Framework - heavy-gauge framework engineered for enhanced strength of side panels and roof.
  8. Insulated Chimney - the chimney is a Type HT listed, factory-built chimney for wood-burning appliances. Two 4-foot chimney sections are standard.
  9. Rear Exhaust Outlet - increases efficiency and eliminates leaks and corrosion that competitors experience from chimneys that exit through the roof. Designed for easy inspection. Reduces heat loss by over 50%.
  10. Water-Filled HeatLock Baffle - creates secondary combustion area and traps heat in the firebox. Will not warp or burn out with extreme heat.
  11. Urethane Foam Insulation - insulation is sprayed on and forms a 100% airtight seal around the water jacket.
  12. Rectangular Firebox - engineered with stay pins. Will not collapse like round designs can.
  13. Ash Pan - 3/8" thick, formed ash pan is durable and easy to clean.

*Fan Draft option available for all models.



Is this model right for my application? Use the Savings and Sizing Calculator to find out:

Savings and furnace sizing calculator

Other Resources:

Download PDF BROCHURE

Download PDF OWNER'S MANUAL (for Classic furnaces manufactured prior to May 15, 2015)

Download PDF OWNER'S MANUAL (for Classic furnaces manufactured on or after May 15, 2015)

Download PDF FRENCH OWNER'S MANUAL

Color Options

Color selections are close representations but are limited by processing and viewing conditions.

charcoal furnace swatch
Charcoal
green furnace swatch
Forest Green
taupe furnace swatch
Taupe

Classic CL 5036


Find your local dealer

In the U.S., this appliance is for non-residential applications only.

Specifications

Replaces up to 300 gallons of fuel oil per month*

Door - 23"W x 23"H

Firebox - 50"L x 36"H x 30"W

Heat Transfer Area - 74 sq ft

Weight - 1,670 lbs

Water Capacity - 196 gal.

Measurements and Foundation Dimensions - Illustration

Included with outdoor furnace - Water Test Kit, Rain Cap, Thermostatic Valve Kit and two 4-foot chimney sections

*Actual performance values have been relayed to Central Boiler by Central Boiler Classic furnace owners.


Features and Benefits

  • More heat from the wood - the RippleTop design maximizes the surface area of the firebox and the HeatLock Baffle traps the heat in the heat collection area.
  • Easy to load - the large, insulated cast iron door is ergonomically designed for easy opening and closing and insulated to lock in the heat.
  • Easy to operate - the automatic draft control opens and closes as needed to control the water temperature in the system.
  • Durable and long-lasting - steel siding and powder-coating paint provide unequaled fit and finish and withstand the elements of time.
  • Dual Fuel Ready option - All Classic models are available as a Dual Fuel Ready model (standard on the CL 7260 and Pallet Burner) that allows the furnace to be fitted with an optional fuel oil, natural gas, or propane burner.

undefined

  1. Vent Cap - design eliminates evaporation.
  2. High Capacity Water Jacket - is tested multiple times to ensure welding integrity.
  3. Ripple Top Design - for increased heat transfer area and lower maintenance.
  4. Large, Insulated Cast Iron Door - ergonomically designed with a large door for easy loading. Door is insulated for maximum efficiency. Door parts are powder-coated for increased paint durability.
  5. Automatic Draft Control - thermostatically controls the system water temperature.
  6. Skid Base Framework - makes installation easy with or without cement foundation. Only the CL 7260 and Pallet Burner require a slab.
  7. Welded Steel Framework - heavy-gauge framework engineered for enhanced strength of side panels and roof.
  8. Insulated Chimney - the chimney is a Type HT listed, factory-built chimney for wood-burning appliances. Two 4-foot chimney sections are standard.
  9. Rear Exhaust Outlet - increases efficiency and eliminates leaks and corrosion that competitors experience from chimneys that exit through the roof. Designed for easy inspection. Reduces heat loss by over 50%.
  10. Water-Filled HeatLock Baffle - creates secondary combustion area and traps heat in the firebox. Will not warp or burn out with extreme heat.
  11. Urethane Foam Insulation - insulation is sprayed on and forms a 100% airtight seal around the water jacket.
  12. Rectangular Firebox - engineered with stay pins. Will not collapse like round designs can.
  13. Ash Pan - 3/8" thick, formed ash pan is durable and easy to clean.

*Fan Draft option available for all models.



Is this model right for my application? Use the Savings and Sizing Calculator to find out:

Savings and furnace sizing calculator

Other Resources:

Download PDF BROCHURE

Download PDF OWNER'S MANUAL (for Classic furnaces manufactured prior to May 15, 2015)

Download PDF OWNER'S MANUAL (for Classic furnaces manufactured on or after May 15, 2015)

Download PDF FRENCH OWNER'S MANUAL

Color Options

Color selections are close representations but are limited by processing and viewing conditions.

charcoal furnace swatch
Charcoal
green furnace swatch
Forest Green
taupe furnace swatch
Taupe

Classic CL 6048


Find your local dealer

In the U.S., this appliance is for non-residential applications only.

Specifications

Replaces up to 600 gallons of fuel oil per month*

Door - 23"W x 31"H

Firebox - 60"L x 48"H x 36"W

Heat Transfer Area - 119 sq ft

Weight - 2,450 lbs

Water Capacity - 393 gal.

Measurements and Foundation Dimensions - Illustration

Included with outdoor furnace - Water Test Kit, Rain Cap, Thermostatic Valve Kit and two 4-foot chimney sections

*Actual performance values have been relayed to Central Boiler by Central Boiler Classic furnace owners.


Features and Benefits

  • More heat from the wood - the RippleTop design maximizes the surface area of the firebox and the HeatLock Baffle traps the heat in the heat collection area.
  • Easy to load - the large, insulated cast iron door is ergonomically designed for easy opening and closing and insulated to lock in the heat.
  • Easy to operate - the automatic draft control opens and closes as needed to control the water temperature in the system.
  • Durable and long-lasting - steel siding and powder-coating paint provide unequaled fit and finish and withstand the elements of time.
  • Dual Fuel Ready option - All Classic models are available as a Dual Fuel Ready model (standard on the CL 7260 and Pallet Burner) that allows the furnace to be fitted with an optional fuel oil, natural gas, or propane burner.

undefined

  1. Vent Cap - design eliminates evaporation.
  2. High Capacity Water Jacket - is tested multiple times to ensure welding integrity.
  3. Ripple Top Design - for increased heat transfer area and lower maintenance.
  4. Large, Insulated Cast Iron Door - ergonomically designed with a large door for easy loading. Door is insulated for maximum efficiency. Door parts are powder-coated for increased paint durability.
  5. Automatic Draft Control - thermostatically controls the system water temperature.
  6. Skid Base Framework - makes installation easy with or without cement foundation. Only the CL 7260 and Pallet Burner require a slab.
  7. Welded Steel Framework - heavy-gauge framework engineered for enhanced strength of side panels and roof.
  8. Insulated Chimney - the chimney is a Type HT listed, factory-built chimney for wood-burning appliances. Two 4-foot chimney sections are standard.
  9. Rear Exhaust Outlet - increases efficiency and eliminates leaks and corrosion that competitors experience from chimneys that exit through the roof. Designed for easy inspection. Reduces heat loss by over 50%.
  10. Water-Filled HeatLock Baffle - creates secondary combustion area and traps heat in the firebox. Will not warp or burn out with extreme heat.
  11. Urethane Foam Insulation - insulation is sprayed on and forms a 100% airtight seal around the water jacket.
  12. Rectangular Firebox - engineered with stay pins. Will not collapse like round designs can.
  13. Ash Pan - 3/8" thick, formed ash pan is durable and easy to clean.

*Fan Draft option available for all models.



Is this model right for my application? Use the Savings and Sizing Calculator to find out:

Savings and furnace sizing calculator

Other Resources:

Download PDF BROCHURE

Download PDF OWNER'S MANUAL (for Classic furnaces manufactured prior to May 15, 2015)

Download PDF OWNER'S MANUAL (for Classic furnaces manufactured on or after May 15, 2015)

Download PDF FRENCH OWNER'S MANUAL

Color Options

Color selections are close representations but are limited by processing and viewing conditions.

charcoal furnace swatch
Charcoal
green furnace swatch
Forest Green
taupe furnace swatch
Taupe

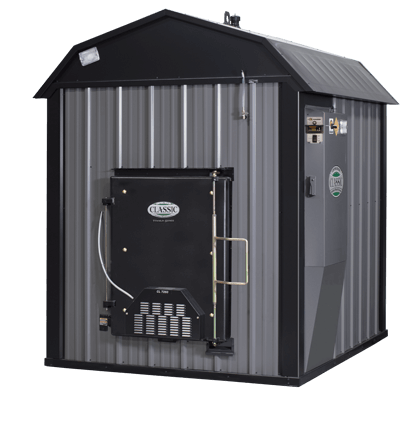

Classic CL 7260


Find your local dealer

In the U.S., this appliance is for non-residential applications only.

Specifications

Replaces up to 1,500 gallons of fuel oil per month*

Door - 30"W x 40"H

Firebox - 72"L x 60"H x 40"W

Heat Transfer Area - 170 sq ft

Weight - 3,910 lbs

Water Capacity - 764 gal.

Measurements and Foundation Dimensions - Illustration

Included with outdoor furnace - Water Test Kit, Rain Cap, Double Thermostatic Valve Kit, Chimney Band Clamp Kit (2), Chimney Base Bracket Kit, Firebox Door Draft Inducer Kit and three 4-foot chimney sections

*Actual performance values have been relayed to Central Boiler by Central Boiler Classic furnace owners.

The Classic CL 7260 is Dual Fuel Ready standard. The furnace can be fitted with an optional fuel oil, natural gas or propane burner (sold separately). Click here to learn more about Dual Fuel Ready models.


Features and Benefits

  • More heat from the wood - the RippleTop design maximizes the surface area of the firebox and the HeatLock Baffle traps the heat in the heat collection area.
  • Easy to load - the large, insulated cast iron door is ergonomically designed for easy opening and closing and insulated to lock in the heat.
  • Easy to operate - the automatic draft control opens and closes as needed to control the water temperature in the system.
  • Durable and long-lasting - steel siding and powder-coating paint provide unequaled fit and finish and withstand the elements of time.
  • Dual Fuel Ready option - All Classic models are available as a Dual Fuel Ready model (standard on the CL 7260 and Pallet Burner) that allows the furnace to be fitted with an optional fuel oil, natural gas, or propane burner.

undefined

  1. Vent Cap - design eliminates evaporation.
  2. High Capacity Water Jacket - is tested multiple times to ensure welding integrity.
  3. Ripple Top Design - for increased heat transfer area and lower maintenance.
  4. Large, Insulated Cast Iron Door - ergonomically designed with a large door for easy loading. Door is insulated for maximum efficiency. Door parts are powder-coated for increased paint durability.
  5. Automatic Draft Control - thermostatically controls the system water temperature.
  6. Skid Base Framework - makes installation easy with or without cement foundation. Only the CL 7260 and Pallet Burner require a slab.
  7. Welded Steel Framework - heavy-gauge framework engineered for enhanced strength of side panels and roof.
  8. Insulated Chimney - the chimney is a Type HT listed, factory-built chimney for wood-burning appliances. Two 4-foot chimney sections are standard.
  9. Rear Exhaust Outlet - increases efficiency and eliminates leaks and corrosion that competitors experience from chimneys that exit through the roof. Designed for easy inspection. Reduces heat loss by over 50%.
  10. Water-Filled HeatLock Baffle - creates secondary combustion area and traps heat in the firebox. Will not warp or burn out with extreme heat.
  11. Urethane Foam Insulation - insulation is sprayed on and forms a 100% airtight seal around the water jacket.
  12. Rectangular Firebox - engineered with stay pins. Will not collapse like round designs can.
  13. Ash Pan - 3/8" thick, formed ash pan is durable and easy to clean.

*Fan Draft option available for all models.



Is this model right for my application? Use the Savings and Sizing Calculator to find out:

Savings and furnace sizing calculator

Other Resources:

Download PDF BROCHURE

Download PDF OWNER'S MANUAL (for Classic Dual Fuel furnaces manufactured prior to May 15, 2015)

Download PDF OWNER'S MANUAL (for Classic Dual Fuel furnaces manufactured on or after May 15, 2015)

Download PDF FRENCH OWNER'S MANUAL

Color Options

Color selections are close representations but are limited by processing and viewing conditions.

charcoal furnace swatch
Charcoal

Pallet Burner


Find your local dealer

Features and Specifications

Business solution for light commercial or industrial use.

  • Eliminates expensive disposal costs of scrap wood.
  • Efficient heat recovery from disposal of pallets, crating material, wood remnants or cord wood.
  • Loads easily with a forklift or by hand.
  • Provides high capacity water heating.
  • Heats multiple buildings, kilns, greenhouses and swimming pools.
  • Works well with existing heating systems.
  • Can be located up to 500 feet from buildings.

Door - 54"W x 50"H

Firebox - 72"L x 66"H x 54"W

Draft Control - Primary and secondary power draft inducers

Steel Thickness - 3/8", 1/4"

Weight - 4,880 lbs

Water Capacity - 556 gal.

Chimney - 12 ft (extensions available)

Measurements and Foundation Dimensions - Illustration

Included with outdoor furnace - Water Test Kit, Rain Cap, Double Thermostatic Valve Kit, Chimney Band Clamp Kit (2), Chimney Base Bracket Kit, Firebox Door Draft Inducer Kit (2), Side Draft Inducer Kit and three 4-foot chimney sections

The Pallet Burner is Dual Fuel Ready standard. The furnace can be fitted with an optional fuel oil, natural gas or propane burner (sold separately). Click here to learn more about Dual Fuel Ready models.

 The Pallet Burner is not a Classic model. Heating capacity similar to the CL 7260*

*Actual performance values have been relayed to Central Boiler by Central Boiler Classic furnace owners.


Is this model right for my application? Use the Savings and Sizing Calculator to find out:

Savings and furnace sizing calculator

Other Resources:

Download PDF PALLET BURNER FLYER

Download PDF OWNER'S MANUAL (for Pallet Burner furnaces manufactured prior to May 15, 2015)

Download PDF OWNER'S MANUAL (for Pallet Burner furnaces manufactured on or after May 15, 2015)

Download PDF FRENCH OWNER'S MANUAL

Color Options

Color selections are close representations but are limited by processing and viewing conditions.

charcoal furnace swatch
Charcoal
