Classic outdoor wood furnace logo

Classic Titanium Series Outdoor Wood Furnace

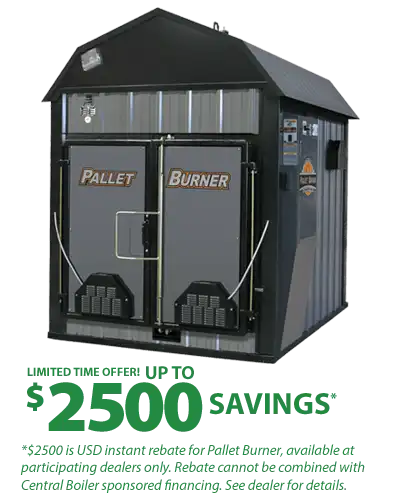

Pallet Burner - Specifications

In the U.S., the Pallet Burner is for non-residential applications only.

NOTE: The Pallet Burner is NOT a Classic model and is not available with the titanium-enhanced stainless steel firebox.

Door - 54"W x 50"H

Firebox - 72"L x 66"H x 54"W

Draft Control - Primary and secondary power draft inducers

Steel Thickness - 3/8", 1/4"

Weight - 4,880 lbs

Water Capacity - 556 gal.

Chimney - 12 ft (extensions available)

Measurements and Foundation Dimensions - Illustration

Included with outdoor furnace - Water Test Kit, Chimney Base Bracket Kit, Firebox Door Draft Inducer Kit (2), Side Draft Inducer Kit and three 4-foot chimney sections

Recommended (not required) - Ground Rod Kit (p/n 6593)

Business solution for light commercial or industrial use.

  • Eliminates expensive disposal costs of scrap wood.
  • Efficient heat recovery from disposal of pallets, crating material, wood remnants or cord wood.
  • Loads easily with a forklift or by hand.
  • Provides high capacity water heating.
  • Heats multiple buildings, kilns, greenhouses and swimming pools.
  • Works well with existing heating systems.
  • Can be located up to 500 feet from buildings.

 The Pallet Burner is Dual Fuel Ready standard. The furnace can be fitted with an optional fuel oil, natural gas or propane burner (sold separately). Click here to learn more about Dual Fuel Ready models.

 The Pallet Burner is not a Classic model. Heating capacity similar to the CL 7260*

*Actual performance values have been relayed to Central Boiler by Central Boiler Classic furnace owners.

Find your local dealer

 Is this model right for my application? Use the Savings and Sizing Calculator to find out:

Savings and furnace sizing calculator

Other Resources:





Color Options

Color selections are close representations but are limited by processing and viewing conditions.

charcoal furnace swatch
