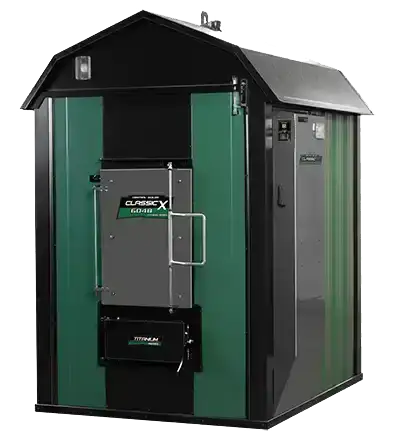

Classic X 6048 Titanium Series - Specifications
In the U.S., the Classic X 6048 is for non-residential applications only.
Door - 23"W x 31"H
Firebox - 59"L x 44"H x 36"W
Firebox Volume - 37.7 cu ft
Weight - 2,000 lbs (est.)
Water Capacity - 350 gal.
1-1/4" Supply/Return Ports - 3 each
Measurements and Foundation Dimensions - Illustration
Included with outdoor furnace - Water Test Kit, cleaning tools and one 4-foot 8" chimney section
Recommended (not required) - Ground Rod Kit (p/n 6593)
OPTIONS:
Dual Fuel Ready - Easily add an optional fuel oil, natural gas or propane burner (sold separately).
FireStar® Ready - Wired and ready for a FireStar controller module which lets you stay connected to the furnace from anywhere in the world (sold separately, available in the future).
Features and Benefits
- Vent Cap - Design eliminates evaporation.
- High Capacity Water Jacket - Tested multiple times to ensure welding integrity.
- Patented Ripple Top™ Design - Increases heat transfer area in the firebox and absorbs radiant heat.
- Large, Insulated Steel Door - Ergonomically designed with a large door for easy loading. Door is insulated for maximum efficiency. Door parts are powder-coated for increased paint durability. Central Boiler's Cam Loc® door closure ensures a tight seal each time the door is closed.
- Rear Exhaust Outlet - Increases efficiency and eliminates leaks and corrosion that competitors experience from chimneys that exit through the roof. Designed for easy inspection. Reduces heat loss by over 50%.
- Removable Swinging Baffles - Increases combustion efficiency and easily removed with no tools.
- Shaker Grates - Makes ash removal easy.
- Urethane Foam Insulation - Insulation is sprayed on and forms a 100% airtight seal around the water jacket.
- Patented HeatLock Baffle® - Secondary Heat Exchanger - With up to 36% more heating surface area than other brands, it traps more heat and gases for most complete combustion and heat extraction.
- Combustion Accelerator™ - The over-air tube provides air at the top of the Combustion Dome, accelerating combustion and improving combustion efficiency.
- Combustion Dome™ - Area at the front of the firebox where gases are trapped for more complete combustion.
- Cyclone Side Draft - Provides primary fan-forced adjustable air delivery controlled by actuators rather than solenoids.
- Ash Clean Out Door - Easily remove ash during operation.
- Titanium-Enhanced Stainless Steel, Rectangular Firebox - Superior corrosion resistance and excellent heat transfer performance. Engineered with stay pins. Will not collapse like round designs can.
- Skid Base Framework - makes installation easy with or without cement foundation.
- Welded Steel Framework - heavy-gauge framework engineered for enhanced strength of side panels and roof.
- Insulated Chimney - The chimney is a Type HT listed, factory-built chimney.
Is this model right for my application? Use the Sizing Calculator to find out:
